Description / JUKI AP-874S-ZSZZN-BB4 SEMI AUTOMATIC POCKET SETTER
Juki AP-874S-ZSZZN-BB4
Jeans Pocket Setter (Semi-auto type)
The sewing machine has been specifically designed for being capable of placing the next sewing pocket while engaging in placing the current pocket which is preliminary folded by a pocket folding machine on a garment body and sewing it.
The machine is a state-of-the-art sewing machine which achieves consistent quality and higher productivity.
Higher productivity

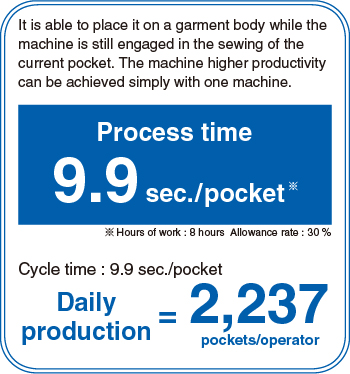

The maximum sewing speed of the sewing machine is 4,000 sti/min. The sewing machine demonstrates excellent productivity, with its high-speed feed, its mechanical operation with unwasted motion, and its cycle time of approximately 9.9 sec./pocket.
Operation panel
The machine has adopted the operation panel IP-420 with a large color liquid crystal display. Now, it is possible to input/modify sewing data on the main body of the sewing machine. In addition, the operation panel supports USB. Various USB flash devices are applicable.
Active tension mechanism
The machine has adopted JUKI's unique active tension mechanism for its needle tension control.
The active tension mechanism controls the needle thread tension according to sewing conditions such as the type of material and sewing section of the material, thereby achieving upgraded seam quality.
Sewing area is broadened
The sewing area is as wide as 250 mm × 250 mm. The machine can now sew large pockets.
Encoder control
The machine has adopted the stepping motor with an encoder for the X-Y feed drive. The motor drives the machine using the minimum electric power according the material weight and stitch length, thereby contributing to reduced power consumption.
Technical Specification
| Model name | Juki AP-874 |
|---|---|
| Machine head | High-speed, 1-needle, lockstitch, zigzag stitching machine (exclusive machine head) |
| Max. sewing speed | 4,000 sti/min* |
| Sewing area | 250mm × 250mm |
| Stitch length, Max zigzag width | 0.1mm~6.0mm, 4.3mm |
| Needle (at the time of delivery) | SCHMETZ 134 SERV7 (Nm130) |
| Hook | Horizontal-axis full-rotary 1.7 fold-capacity hook |
| Needle thread breakage detection | Provided as standard |
| Stacking capacity | Max. 64 pieces of jeans bodies |
| Number of patterns that can be stored in memory | Main-body memory: Max. 999 patterns External media: Max. 999 patterns |
| Feeding method | Stepping motor (encoder control system type), X-Y clamp drive |
| Power requirement / Power consumption | Single-phase 220V-240V / 820VA, 3-phase 200V-240V / 760VA |
| Compressed air and air consumption | 0.5Mpa (5kg/cm²), 10.6 dm³/min |
| Total weight | 558Kg |

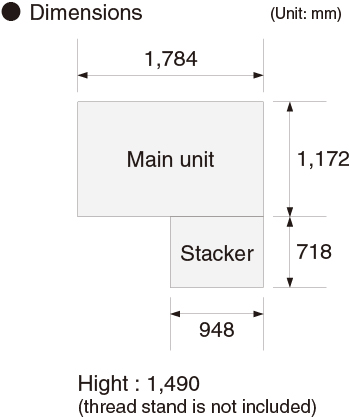

| Dimensions |  |
*sti/min is the abbreviation for “stitches per minute”
