Description / JUKI DLN-5410NJ-7 NEEDLE FEED HEAD JEANS SPEC AUTO THREAD TRIM

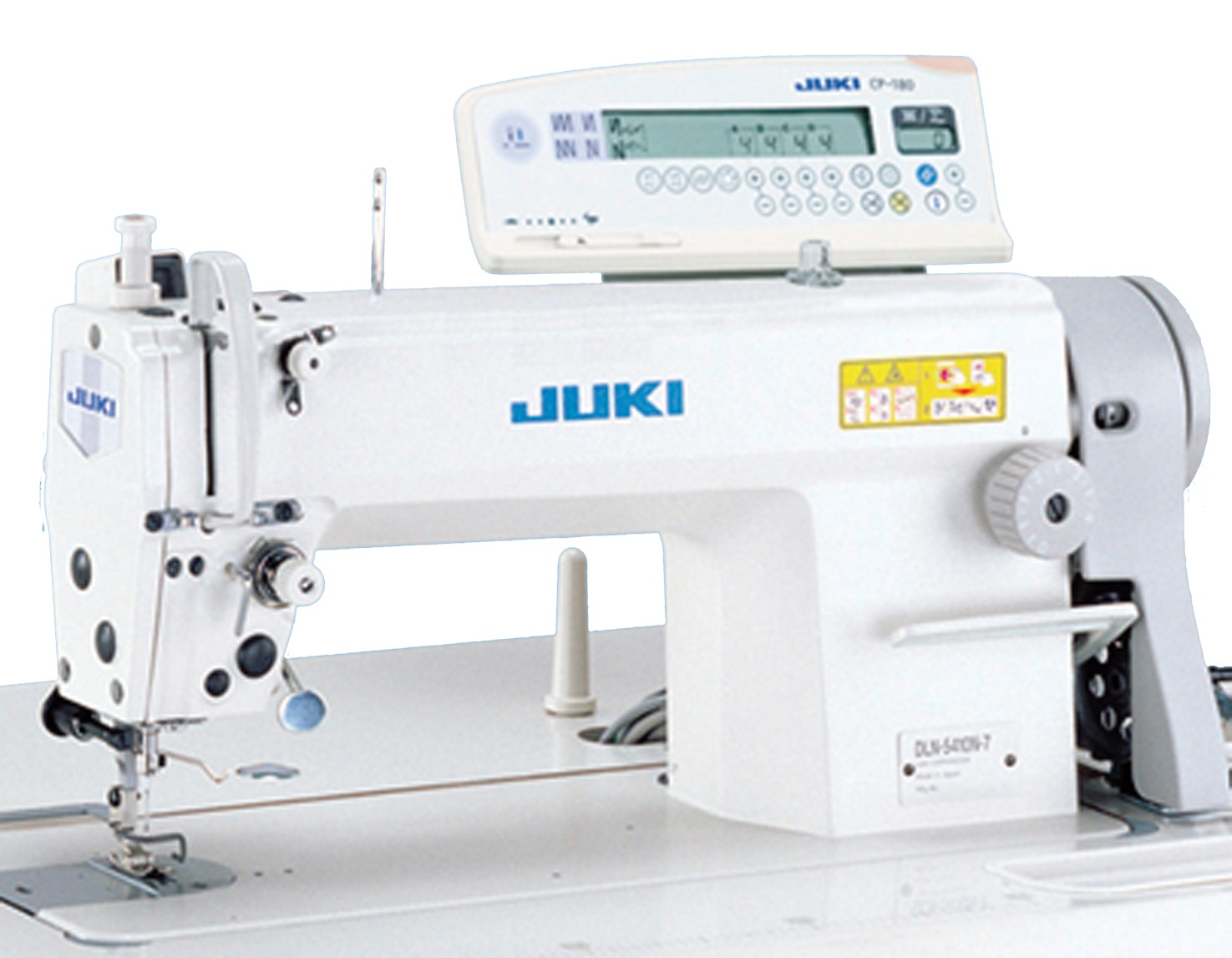

Juki DLN-5410NJ-7
- 1-needle, Needle-feed, Jeans Spec. Lockstitch Machine (With Automatic Thread Trimmer).
With its needle feed mechanism, the machine supports the operator, promotes efficiency in production, and upgrades the quality of finished products.
Sure thread trimming mechanism DLN-5410N-7 (with automatic thread trimmer)
The moving knife has been designed so that it can be easily replaced, thus facilitating machine maintenance.
Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn
The machine head has been redesigned to improve the performance of each component. Thanks to the machine's low-tension sewing capability and the adjustment function for the needle feed amount (±15%), uneven material feeding and puckering rarely occur, thus enhancing the machine's ability to respond to any change in the material to be sewn.
The optimally balanced design of the machine head and the stronger frame structure significantly reduce machine vibration and noise while the machine is being operated.
Durability and reliability of the machine are improved
It is designed to reinforce the feed components, lubrication components, and frame, and to seal hermetically the needle bar frame. As a result, durability and reliability of the machine are improved and economical efficiency will be remarkably enhanced.
The new model control box, which energy-saving mode is provided (SC-920C/M92)
The new model control box SC-920C has been newly developed. The control box is resistant to voltage fluctuations, noise and vibration.
The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines.
It reduces power consumption during standby time when the motor is not rotating by approximately 25 % (in comparison with the SC-910N).
In addition, the current DLN-5410N is lavished with the latest energy-saving technologies, including the adoption of the latest compact servomotor M92, to be more friendly to theenvironment, as well as to provide the power reducing effect and to increase productivity.
The operation panel can be selected according to the process (CP-18A, CP-180A)
Two different operation panels, the CP-18A and CP-180A are applicable to the DLN- 5410N. Both operation panels are provided with the production support function.
The production support function actually consists of three different functions (six different modes)
Higher lift of the presser foot
This machine is equipped with various devices that reduce the operator's fatigue and allow the operator to easily operate the machine. These devices include the following: The foot pedal needs only light pressure to be operated. The presser foot can be lifted as high as 13mm.
The shape of the machine arm has been designed to allow the operator to handle any material with ease.
Technical Specifications
| Model | Juki DLN-5410NJ-7 |
|---|---|
| Application | For jeans |
| Max. sewing speed | 4,000sti/min* |
| Max. stitch length | 4.5mm |
| Needle bar stroke | 33mm |
| Lift of the presser foot | By hand: 5.5mm, By knee: 13mm |
| Needle (at the time of delivery) | DB×1 (#21) For JE: 134 (Nm130) |
| Hook | Automatic-lubricating double-capacity full-rotary hook |
| Thread | #30~#8, B46~B92, Nm60/3~30/3 |
| Lubrication | Automatic |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Automatic reverse feed function | Provided as standard |
| Power requirement | Single-phase 100~120V, 200~240V, 3-phase 200~240V |
| Power consumption | 650VA |
| Total weight | 83kg |
More Information
| Part No | JUKIDLN5410NJ7 |
|---|---|
| Weight (KG) | 44.000000 |
| Manufacturer | Juki |
