JUKI DLN-9010A-SS-WBAK118 DIRECT DRIVE NEEDLE FEED LOCKSTITCH LIGHT TO MEDIUM WEIGHT

The machine is installed with a highly reliable needle feed mechanism

Thanks to the needle-feed mechanism which offers excellent efficiency of feed, the machine ensures accurate stitch pitches (stitch length) as well as preventing slippage of the upper cloth.
The bottom feed's locus has been improved to match the needle feed motion, thus the machine produces beautiful seams without stitch gathering, even when it is used for sewing slippery and difficult-to-feed material or for handling a difficult process.

The needle feed mechanism is a so-called "dry type", which does not require oiling. With this mechanism, a highly reliable machine structure, free from oil leakage troubles, has been achieved.
The frame, which requires only a minute quantity of lubricating oil, is structured to eliminate oil leakage.

The machine can be easily changed over from a needle feed mechanism to a bottom feed mechanism easily, through a simple adjustment and gauge replacement. It is a useful feature for those users who also want to use the machine simply as a regular bottom feed type machine in accordance with applications and processes.

The machine no longer uses an oil pan
With this oil pan-less structure, the machine helps create a clean work environment

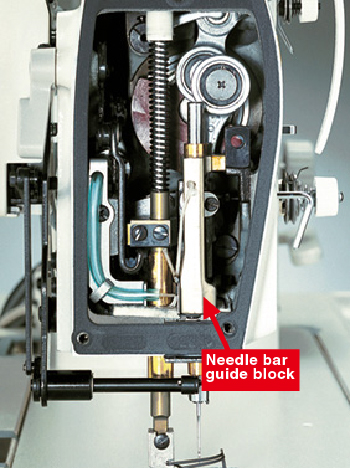

The machine has been configured to eliminate the oil pan, and supplies a minute quantity of lubricating oil to the hook and needle bar, thereby contributing to the reation of a clean work environment.

The machine saves you the time and trouble of removing the knee-lifter and cover. This means that the machine head can be tilted for cleaning and maintenance without the inconvenience of removing the knee-lifter and cover.

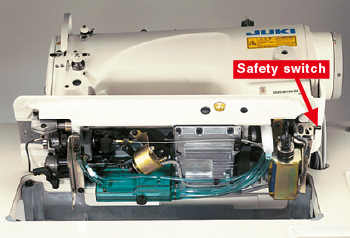

Even if you tilt the machine head while the power is still ON, the safety switch will disable the machine. This means the machine won't start running when the head is tilted even if you press the foot pedal.

The machine is provided with various easy-to-operate functions for increased operability

Micro-Lifter
The machine is equipped as standard with a micro-lifter. It works to constantly float the presser foot above an elastic or other difficult to sew materials, thereby helping effectively reduce material slippage as well as damages by the presser foot on the material.

Lubricating Hole
The lubricating hole is located on the arm. This allows the operator to carry out the oiling process without tilting the machine head.

The latest compact-size servomotor
The DLN-9010A is installed wit the latest compact servomotor.

Bobbin thread winder
The Bobbin thread winder is built-in at the top surface of the machine head. The built-in bobbin winder ensures easy replacement of the bobbin thread. The bobbin winder also incorporates a thread cutting knife, as well as a bobbin thread quantity adjusting function.

Presser Foot
The maximum lift of the presser foot is increased to 15mm. By using the higher-lift of the presser foot in combination with the machines needle-up stopping feature , easier placement of the heavyweight material on the machine is ensured.

Automatic thread trimmer mechanism
Precise control of the thread trimming timing is now enabled. As a result, the thread trimming speed is increased 1.5 times or more while maintaining the high reliability of the conventional type of thread trimmer.

Attachment-mounting seat
Installation of an attachment-mounting seat improves the operability when replacing the attachment and increases the durability of the machine surface bed.

Automatic reverse feed function
The machine has a pushbutton-type reverse feed switch. The automatic reverse feed switch can be re-positioned to best match the operator.

Hinge
The hinge has been moved 10cm from behind the needle entry point. Thanks to the improvement in the hinge location, the material will no longer be caught by the hinge, thus contributing to upgraded workability.

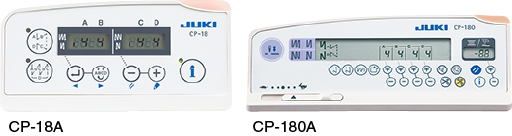

The operation panel can be selected according to the process (CP-18A,CP-180A)

Two different operation panels, the CP-18A and CP-180A are applicable to the DLN-9010A. Both operation panels are provided with the production support function.

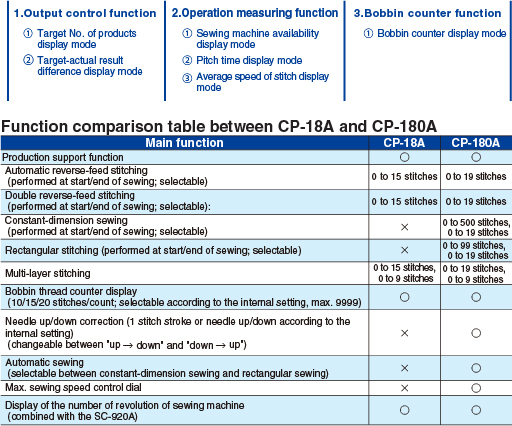

The production support function actually consists of three different functions (six different modes)

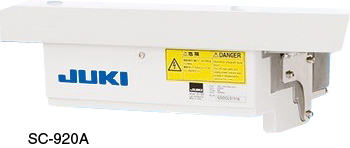

The new model control box, which energy-saving mode is provided (SC-920A)

The new model control box SC-920A, which consists of an energy-saving mode, has been developed. This control box is the first one which provides an energy-saving mode for the sewing machine. The power consumption during standby, when the motor is at rest, is reduced by approximately 20%.
