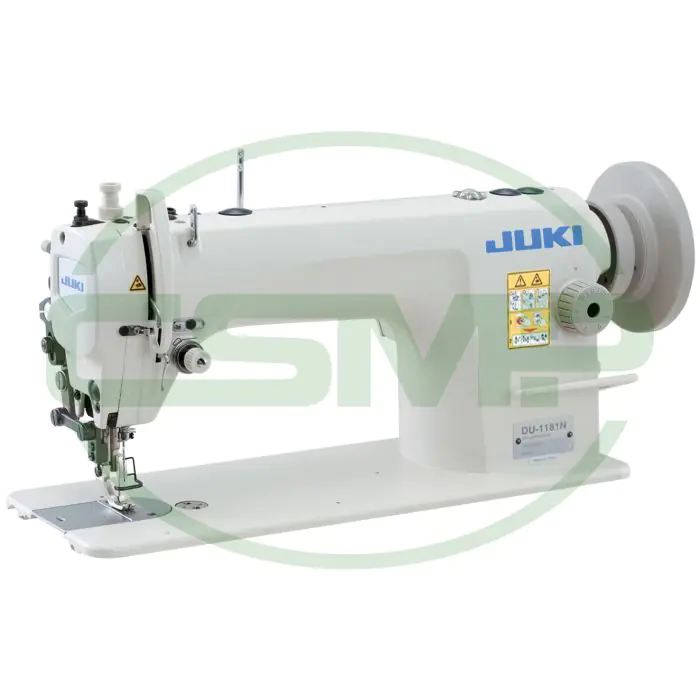

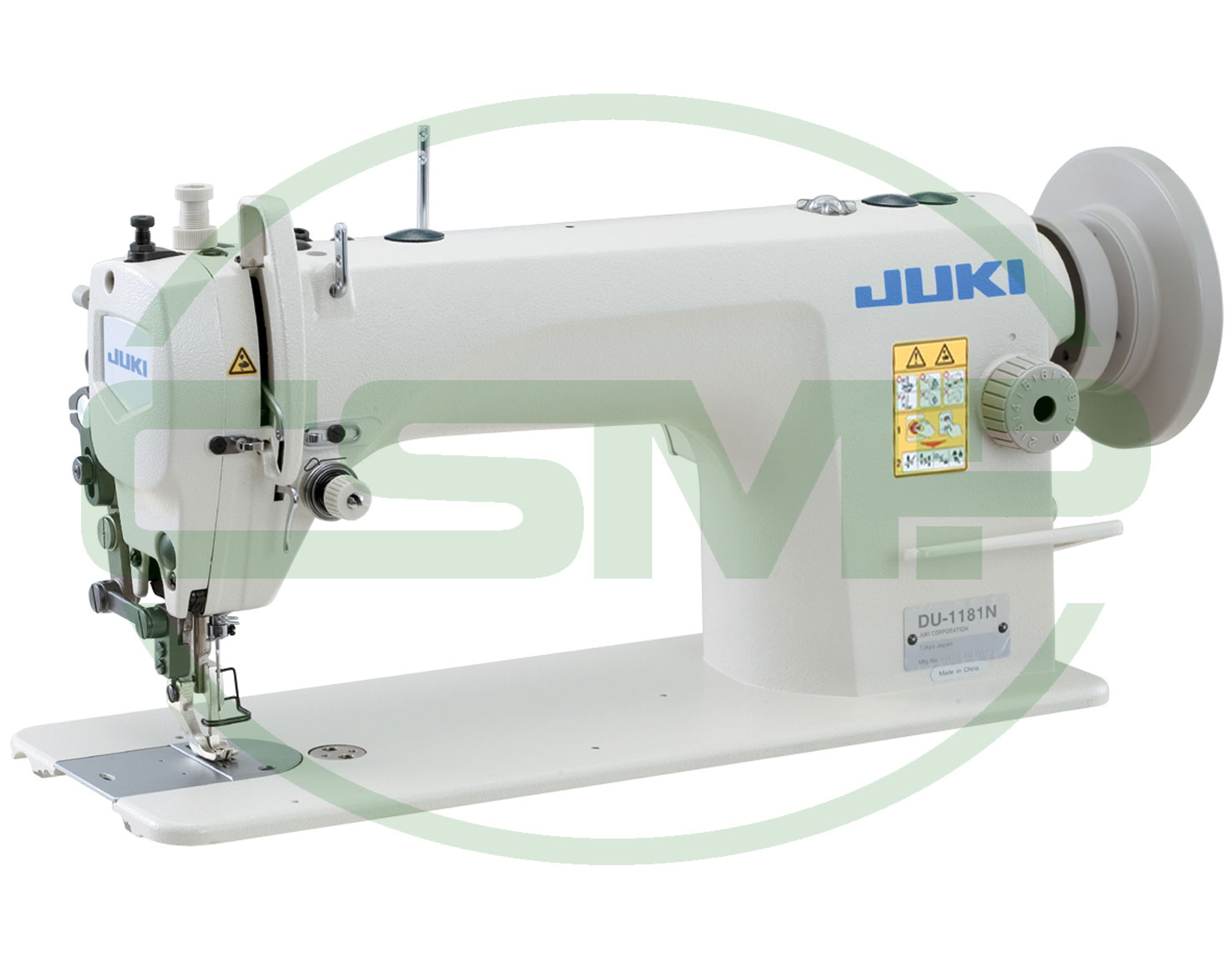

JUKI DU-1181N WALKING FOOT LOCKSTITCH LARGE HOOK HEAD ONLY
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI DU-1181N WALKING FOOT LOCKSTITCH LARGE HOOK HEAD ONLY
Juki DU-1181N
1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook
With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.
Higher lift of the presser foot
The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.
The maximum stitch length is 9 mm
With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.
The double-capacity hook is provided as standard
The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.
Automatic lubricating mechanism
A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.
The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
The machine achieves low-vibration and low-noise
The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.
Excellent operability and maintainability
The stitch pitch can be adjusted in both the normal and reverse directions.
The height and inclination of the feed dog can be adjusted.
The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material.
The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after openning the rubber caps (three caps) on top of the machine head.
Technical Specification
| Model name | Juki DU-1181N |
|---|---|
| Max. sewing speed | 2,000sti/min* |
| Max. stitch length | 9mm (forward/backward) |
| Needle bar stroke | 36.5mm |
| Lift of the presser foot | By hand: 5.5mm, By knee: 15mm |
| Thread take-up | Link type |
| Alternating vertical movement | 2~5mm |
| Hook | Horizontal-axis full-rotary double-capacity hook |
| Needle (at the time of delivery) | DP×17 (#21) #14~#23 *The DB×1 needle can also be used. |
| Thread | #40~#8 |
| Pitch changing method | By dial |
| Knee-lifter mechanism | Built on the machine head |
| Lubrication | Automatic |
| Lubricating oil | JUKI MACHINE OIL No.7 (equivalent to ISO VG7) |
| Distance from needle to machine arm | 261mm |
| Bed size | 477mm×178mm |
| Weight of the machine head | 31kg |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKIDU1181 |
|---|---|
| Weight (KG) | 42.000000 |
| Manufacturer | Juki |
