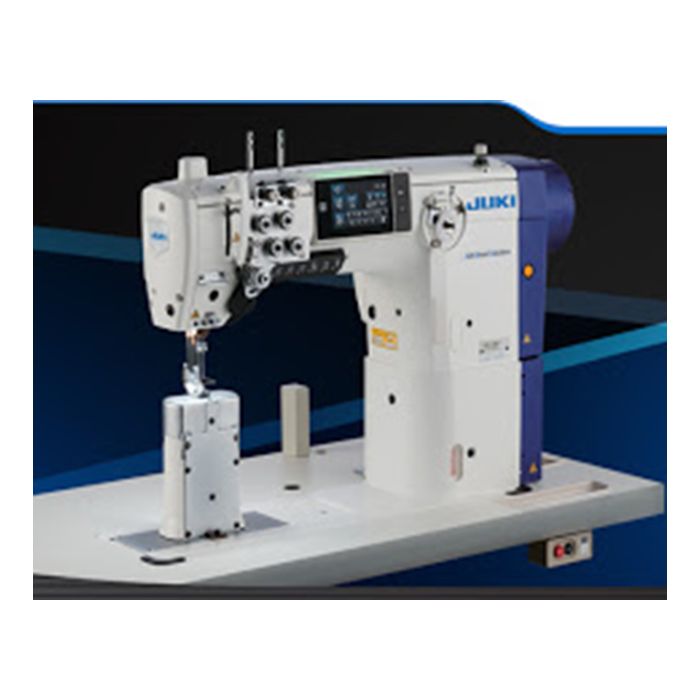

JUKI LS-2328V-7 DIGITAL CYLINDER ARM UNISON FEED MACHINE
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI LS-2328V-7 DIGITAL CYLINDER ARM UNISON FEED MACHINE
Juki LS-2328V-7
Semi-Dry Direct-drive, Cylinder-bed, 1-needle, Unisonfeed, Lockstitch Sewing System with Vertical-axis Hook
This model is the world's first digital cylinder bed machine. With the operational benefits of easy parameter adjustments, NFC communication and sewing profiles this is the industries leading solution for its segment. The wide cylinder bed allow for improved workability.
Digital Functions
Data on sewing machine adjustments made according to the product to be sewn can be transferred to an Android tablet via NFC. This enables quick check for uniform settings as well as confirmation of conditions of sewing machines in a sewing line, thereby facilitating setup changes. The operation panel is also provided as standard with a USB port. Data management and software update can be carried out with ease using a USB thumb drive.
Sewing conditions can be set easy since sewing conditions such as thread tension, stitch length, presser foot pressure, alternate vertical movement amount, etc. are displayed on one screen.
The sewing machine can be paired with equipment which supports NFC (Near Field Communication) only by holding the equipment over the sewing machine.
Multi-Functional Switch
The LS-2328V-7 comes as standard with a 6 position programable switch. 3 buttons can be programed how you need allowing for the best settings needed for your production. The final buttons are programed to assist with easy operation in mind. Automatic reverse feeding can be triggered by the 4th button. Needle entry alignment is on the 5th position, vital inleather sewing. The final button activates the thread clamp again. The easy access to these functions during sewing allows for increased productivity and higher quality seams vital in leather or heavy fabric sewing.
Technical Specification
| Model name | Juki LS-2328V-7 |
|---|---|
| Type | 1-needle, Unison-feed, Lockstitch Sewing System (Shorter - thread remaining type) |
| Max. sewing speed | 3,500sti/min* |
| Max. stitch length | 3,500sti/min |
| Max. stitch length | 9.0mm |
| Presser foot | 20mm |
| Alternating vertical movement(DL) | 9.0mm |
| Needle thread tension | 0~200 |
| Presser foot pressure | 0~200 |
| Hook | Vertical axis 1.6 fold-capacity hook |
| Needle | 134x35 Nm140(#22), Nm125~180(#20~#24) |
| Thread | 60/3 ~ 20/3 (#30~#5) |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKILS2328V7 |
|---|---|
| Manufacturer | Juki |
