JUKI LU-2810ESAL-7-0BBS HIGH SPEED WALKING FOOT LOCKSTITCH
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI LU-2810ESAL-7-0BBS HIGH SPEED WALKING FOOT LOCKSTITCH
Juki LU-2810ESAL-7-0BBS
Semi-dry Direct-drive, High-speed, 1-needle, Unison-feed, Lockstitch Machine (with automatic thread trimmer) (2.0 Fold-Capacity Hook / long-pitch type)
Maximum sewing speed is increased.
This sewing machine is best-suited to the sewing of multi-layered materials and rigid materials for car seats, air bags and furniture.
Maximum sewing speed is increased
Increased maximum sewing speed of 3,800 sti/min* (LU-2810ESAL-7, 2.0 fold-capacity hook) and 3,500 sti/min* (LU-2818ESAL-7 and LU-2828ESA-7, 2.7-fold-capacity hook) is achieved.
These models of sewing machines demonstrate increased productivity particularly when sewing long materials.
*The maximum sewing speed varies depending on sewing conditions.

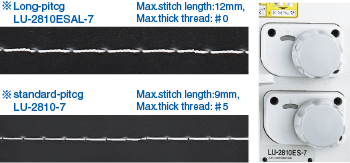

Long-pitch type
(LU-2810ESAL-7 <2.0 Fold-Capacity Hook>
LU-2818ESAL-7 <2.7 Fold-Capacity Hook>)
Long pitch sewing is suitable for decoration sewing of furniture etc.The maximum stitch length is 12mm at the pitch dial.
Technical Specification
| Model name | Juki LU-2810ESAL-7 |
|---|---|
| Type | High-speed, 1-needle, with automatic thread trimmer (2.0 Fold-Capacity Hook / long-pitch type) |
| Max. sewing speed | 3,800sti/min* |
| Max. stitch length | 12mm |
| Stitch length dial | 2 pitch dial |
| Presser foot | Auto: 20mm, By hand: 10mm |
| Auto lifter | Provide as standard |
| Alternating vertical movement | 1~9mm |
| Alternating vertical movement adjusting method | Large dial |
| DL device | Provide as standard |
| Needle thread tension | Single/Double-tension |
| Bottom-feed micro-adjustment mechanism | Provided as standard |
| Hook | Vertical axis 2.0 fold-capacity hook |
| Needle | 135×17 Nm160 (Nm125~Nm180) |
| Thread | #30~#5, B46~B138, Nm=60/3~20/3 |
| Lubrication | Semi-dry head automatic (Tank system) |
| One-touch type reverse feed switch | Provide as standard |
| Hand switch | Multi-functional 6-string switch |
| Safety mechanism | Provided as standard (reset with the push of a button) |
| Machine head weight | 66kg |
| Control box | SC-923 |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKILU2810ESAL70BBS |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Juki |
