Description / JUKI LZ-2284A-7-WBAK 3-step zigzag, UT, wiper, AK, DD

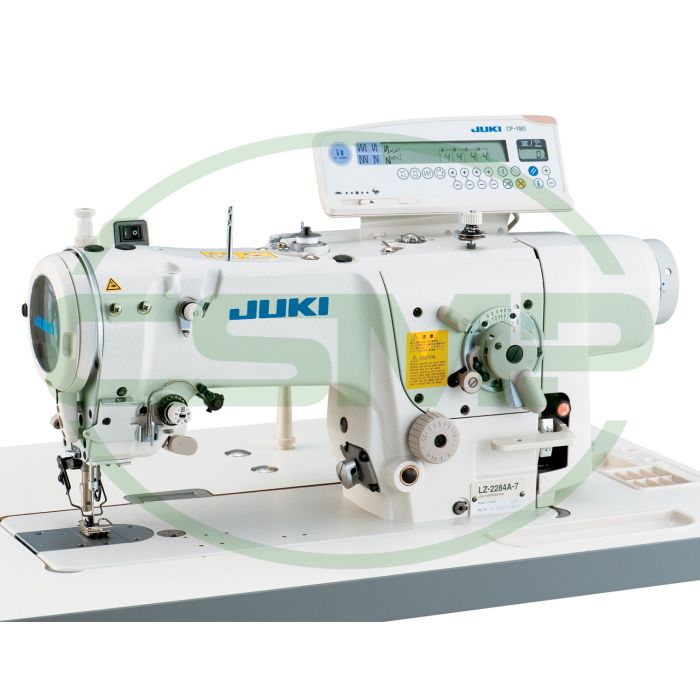

Juki LZ-2284A-7
High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine (3-step Zigzag Stitching Pattern Changeover Function) (with Thread Trimmer)
The machine produces high-quality soft seams.
Equipped with two different functions, the machine is available to handle a wider range of application
LZ-2284A (Standard/3-step Zigzag) can perform two stitching patterns by one machine, thereby increasing the machine operation rate.
Switch between the standard zigzag stitching pattern and 3-step zigzag stitching pattern with simple one-touch control
The operator can easily switch the needle-throwing pattern between the standard and 3-step zigzag stitching patterns using the lever located in the free space under the arm. When changing the sewing product or design, there's no need to adjust the sewing machine head or machine layout.
JUKI's unique thread trimming mechanism
JUKI-specific loop spreading-structure knife sliding system enables thread trimming without fail whether needle throws to the right or the left.
The adjustable range of the feed mechanisms has been widened, thereby upgrading the machine's responsiveness to materials
The feed mechanism has been improved by widening the adjustable range of the height and inclination of the feed dog. The feed locus has been optimized while placing great emphasis on the feed locus at the moment the needle penetrates the material to form a stitch. The weight of the feed mechanism has been reduced by using parts most of which are made of aluminum material. This facilitates sewing of overlapped sections of material that have to be securely held between the presser foot and the feed dog during sewing.
Adjustment for various feed timings
Marker lines engraved on the face plate and the pictorial indication facilitate adjustment of the needle-to-feed timing and the hook timing.
Adjustment of oil quantity in the hook
Oil feeding path of the LZ-2280A Series has been reviewed to enable feeding of consistent quantity of oil.
The sewing machine produces soft seams with consistency with a low tension applied to the thread
Problems which are associated with low-tension sewing such as "double-catching" and "irregular stitches", as well as factors which affect seam quality such as "thread path", "thread bending resistance", "feed locus", "needle locus" and "timing" have been thoroughly reviewed, thereby successfully producing soft seams. The machine has adopted JUKI's established genuine hook and thread take-up lever.
Technical Specification
| Model name | Juki LZ-2284A-7 (With automatic thread trimmer) |
|---|---|
| Stitch system | Standard / 3-step zigzag |
| Stitch pattern |  |
| Max. sewing speed | 5,000sti/min* |
| Max. zigzag width | 5 mm (standard) 10 mm (3-step) |
| Max. feeding amount | 2.5mm |
| Lift of the presser foot | By hand: 5.5 mm, By knee: 10 mm |
| Hook | DP hook (with titanium-treated inner hook) |
| Thread take-up | Rotary type |
| Lubrication | Fully automatic |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Needle (at the time of delivery) | 134SUK (Nm70) |
| Needle position changing mechanism | Provided as standard |
| Reverse feed stitching mechanism | Provided as standard |
| Needle throw pattern cam | Fully automatic |
* “sti/min” stands for “Stitches per Minute”
More Information
| Part No | JUKILZ2284A7WBAK |
|---|---|
| Manufacturer | Juki |
