JUKI LZ-391N ZIG ZAG HEAD ONLY
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI LZ-391N ZIG ZAG HEAD ONLY
Juki LZ-391N
1-needIe, Embroidering Sewing Machine
The machine is capable of embroidering names and marks on sewing products, as well as zigzag stitching, by simply changing the throat plate. When using this machine for zigzag stitching, the zigzag width and stitch length can be changed so that many different types of zigzag stitch can be sewn.
This machine can be used for extra lightweight materials including lawn and organdy, medium-weight materials including those used for blouses and handkerchieves, and heavyweight materials on which names and labels are to be embroidered. Beautifully finished seams free from needle swaying or material breakage are assured every time.

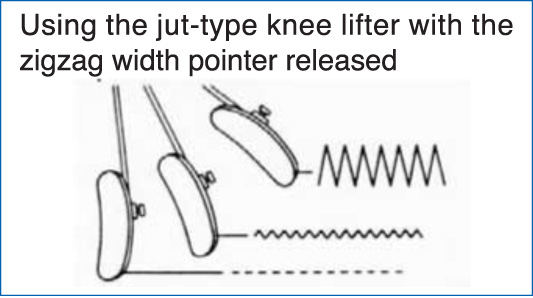

The zigzag width is regulated up to 12 mm using the knee lifter. This knee lifter has been designed to fit the jut-type knee lifter widely used by zigzag stitch machines.
Highly durable and reliable components are used as its major parts, including the needle bar oscillating mechanism, thereby leading to smooth running without vibration even at high speed, the result of which is consistent, high-quality seams.
Technical Specification
| Model name | Juki LZ-391N |
|---|---|
| Max Sewing Speed | 2000 sti/min (with zigzag width is set to 10 mm), 1700 sti/min (with zigzag width is set to 12 mm) |
| Max Stitch Length | 5 mm |
| Needle | DBx1B (#11) #9-18 |
| Needle Gauge | 3.2 mm |
| Max Zigzag Width | 12 mm |
| Needle Bar Stroke | 33.4 mm |
More Information
| Part No | JUKILZ391N |
|---|---|
| Weight (KG) | 34.000000 |
| Manufacturer | Juki |
