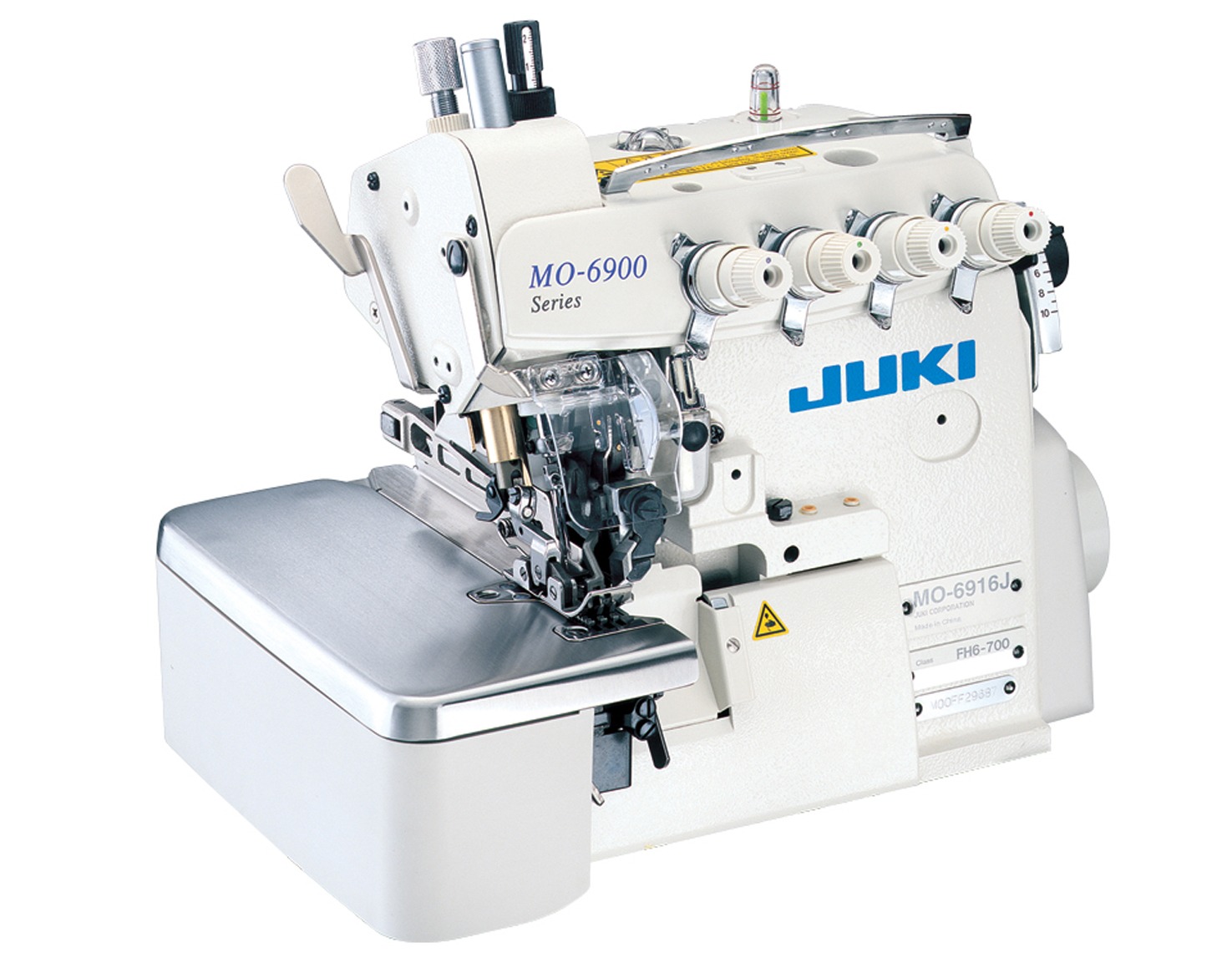

JUKI MO-6904J-0F6-700 JEANS 3 THREAD TOP FEED OVERLOCK
Juki MO-6904J-0F6-700
Variable Top-feed, 1-Needle 3-Thread Overlock / Safety Stitch Machine for Extra Heavy-weight Materials
Pricing and Availability on Request
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI MO-6904J-0F6-700 JEANS 3 THREAD TOP FEED OVERLOCK
Juki MO-6904J-0F6-700
Variable Top-feed, 1-Needle 3-Thread Overlock / Safety Stitch Machine for Extra Heavy-weight Materials
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials.
The machine incorporates a mechanism and parts that are optimum for the sewing of extra heavy-weight materials, such as an extra high-lift type upper looper, tractor foot and coarse type feed dog.
It demonstrates an excellent performance ability in the sewing of various kinds of heavy-weight materials such as jeans, raised fabric materials, mats and carpets.
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials
The MO-6900J Series comes with a newly-developed feed mechanism that moves the top and bottom feeds separately.
With its improved feeding capacity and stronger cloth-biting force, the feed mechanism prevents uneven material feed when sewing extra heavy-weight materials.
- The machine incorporates mechanisms that are both durable and reliable, such as the needle bar mechanism, utilyzing the upper and lower bushings, a cartridge type oil filter and cooling fan.
- The machine is equipped as standard with a micro-lifter that helps reduce operator fatigue. The micro-lifter is designed to achieve optimum balance, not only reducing noise and vibration but also ensuring comfortable operation.
- Needle thread heat remover and needle cooler prevent stitching troubles during times of high-speed sewing, thereby contributing to upgraded seam quality.
- The machine comes standard with various adjusting mechanisms, such as a micro-adjusting mechanism, all of which can be easily adjusted to enable the machine to perform sewing under the best-suited conditions for any kind of material.
Subclass Specification
| Subclass Model | Juki MO-6904J-0F6-700 |
|---|---|
| Material | Extra Heavy-Weight |
| Number of Needles | 1 |
| Number of Threads | 3 |
| Needle Gauge | - |
| Overedging Width | 4.8mm |
| Number of Feed Dog Rows | 3 |
| Stitch Length | 5mm |
| Bottom differential-feed ratio | 1:0.7~1:1.75 |
| Longitudinal stroke of top feed dog | 2.71~7 |
| Presser lifting amount | 8mm |
| Needle system | Dox5 #21 |
| Max sewing speed | 6,000 sti/min* |
| Remarks | For runstitching extra heavy-weight materials such as denim |
* “sti/min” stands for “Stitches per Minute”
Technical Specification
| Model name | Juki MO-6904J |
|---|---|
| Stitch type | 1-needle overlock |
| Stitch style in the U.S.A. | 504 |
| Max. sewing speed | 6,000sti/min* |
| Stitch length | 2.5~5mm |
| Needle gauge (mm) | - |
| Overedging width (mm) | 4.8 |
| Bottom differential feed ratio | For gathering 1:1.75 (max. 1:3.8) For stretching 1:0.7 (max. 1:0.6) |
| Needle bar stroke | 28.8mm |
| Inclination angle of the needle | 20° |
| Needle bar bushing | Upper/lower bushing method |
| Needle | DO×5 (excluding some subclass model) |
| Vertical stroke of top feed dog | 3.5~8.5mm (it differs with the machine's specifications.) |
| Longitudinal stroke of top feed dog | 8.5mm |
| Longitudinal stroke of top feed dog | 2.7~7mm (it differs with the machine's specifications.) |
| Max. lift of the presser foot | 8mm (excluding some subclass model) |
| Max. presser foot pressure | 63.7N (6.5kgf) |
| Stitch adjusting method | By push-button |
| Bottom differential feed adjusting method | By lever (with micro-adjustment) |
| Top differential feed adjusting method | By lever (with micro-adjustment) |
| Weight of the machine head | 29kg |
| Lubrication | Automatic |
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) |
| Needle cooler | Provided as standard |
| Needle thread heat remover | Provided as standard |
| Micro-lifter | Provided as standard |
* “sti/min” stands for “Stitches per Minute”
