JUKI LU-2810A-7-0BBS/JEUX0031-700MM 27" TRIMMER COMPLETE M/CH M51N SC922 CP180 STAND
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI LU-2810A-7-0BBS/JEUX0031-700MM 27" TRIMMER COMPLETE M/CH M51N SC922 CP180 STAND
Juki LU-2810A-7-0BBS/JEUX0031-700
Semi-dry direct drive, unison feed, lockstitch machine with vertical-axis hook (700mm Long Arm - with automatic thread trimmer)
In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Change over in the amount of alternating movement of the walking foot and the presser foot and the changeover of the stitch length can be done simply with the single switch.
The LU-2800 Series long arm has been extended to add to the wide bed area, contributing to vastly improved workability. The machine arm has been doubled in length from 350mm to 1m or 750mm or more making it perfect for sewing large objects usually to awkward to fit under a sewing machine head. The machine has a high torque direct-drive motor which supports the sewing of heavyweight materials. As a result, the sewing machine promises not only improved responsiveness and quick startup, but also higher stop accuracy. The long arm model is also available with 1-needle or 2-needle versions as well as a 750 mm or 1m arm length. This model is manufactured in the EU.

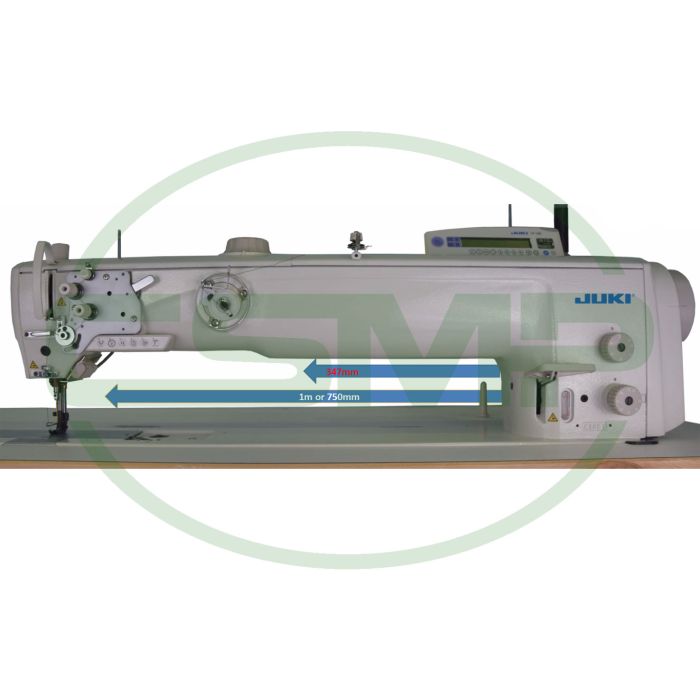

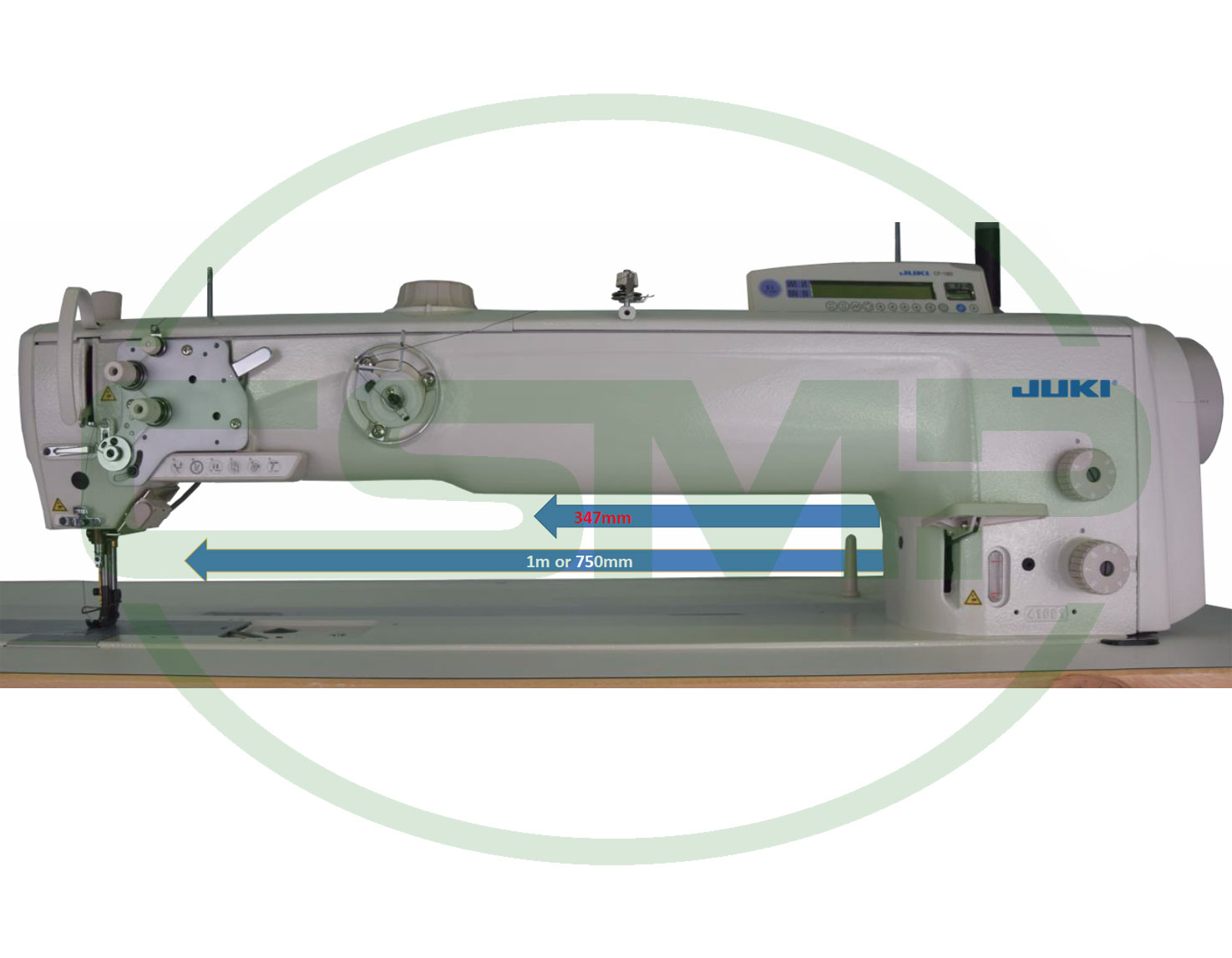

LU-2800 Series Long Arm has been doubled in length compared with the standard model.
LU-2800-7 long arm increased distance to the needle contributes to massively improve the machine workability. The arm length of the standard LU-200 series is 35cm and this has been increase to either 1m or 70cm depending on your requirements.
Similarly to the standard LU-2800 series, there is a high torque direct-drive motor suited to heavy-weight material. This leads to improved stopping accuracy and excellent responsiveness. It also contributes to the reduction of power consumption compared to conventional models.
Double tension provided as standard
Single or Double can be set easy through multi-functional 6-string switch, regarding the machine with trimmer. (available for more thick material)
Multi-functional 6-string switch (thread trimming switch)
In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover in the amount of alternating movement of the walking foot and the presser foot and the changeover of the stitch length can be done simply with the single switch.
Walking-foot/presser-foot alternating vertical movement mechanism
The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9mm max. This amount can be easily set through the large instead of the upper section of the machine.
Hand Pulley
A hand wheel has been included in the middle of the machine arm for both the 1m and the 70cm versions of the machine. This allows for much easier operation even with the extended arm.
Technical Specification
| Model Series | Juki LU-2800 Series /JEUX-0031 |
|---|---|
| Application | Heavy-weight material |
| Max. sewing speed | 3000 sti./min. |
| Feed Type | Unison-feed |
| Other | Thread Trimming |
| Presser Foot Lift | 20 mm |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | LU2810A70BBSJEUX700 |
|---|---|
| Weight (KG) | 0.100000 |
| Manufacturer | Juki |
