JUKI PLC-2760SCA-7-0BB/X55321 PLC POST BED NO GUAGE SET HEAD ONLY
Why Buy from Us?
- You are dealing with the official Juki Sewing Machine UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Juki dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Juki machinery to all Juki Traders, providing the best possible service and local contact for your sewing requirements
Description / JUKI PLC-2760SCA-7-0BB/X55321 PLC POST BED NO GUAGE SET HEAD ONLY

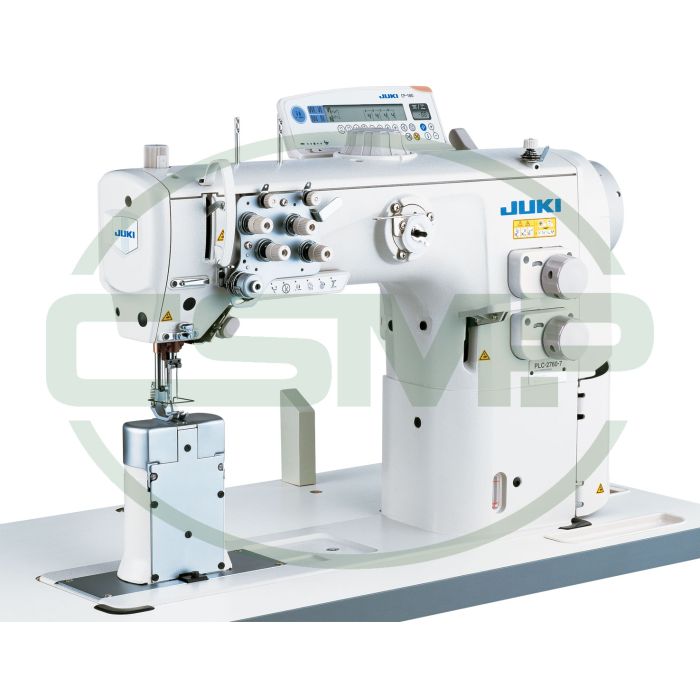

Juki PLC-2760SCA-7-0BB/X55321
2-Needle Post-bed, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook (With automatic thread trimmer) - No Gauge
It is the most-advanced sewing machine which is best-suited to the sewing of heavy weight materials sewing processes such as car-seats, sofas and sports goods.
The long distance from the machine arm to the needle contributes to improved workability
Most-advanced machine best suited to the stitching for heavy weight materials.
Stitches with authentic quality
Stitch length can be changed over among different lengths
The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.
Reduction of noise and vibration
Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.
High-torque direct-drive motor is installed
The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
Walking-foot / presser-foot alternating vertical movement mechanism prevents irregular stitches
The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.
Higher lift of the presser bar
A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.
Eccentricity of the feed driving cam is adjustable
Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.
The upper and lower feed ratio is adjustable
The upper and lower feed ratio can be changed only by the adjustment of the lower feed amount without changing the upper feed amount, thereby preventing material slippage.
New mechanism of thread trimmer
Thread trimming can be stable even at the maximum 12mm sewing length.
Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches
The hook which can be adjusted with screw amout of needle guard contact to needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.
New lubrication system
Oil does not flow backwards by a valve system. Therefore, oil can be supplied certainly even low speed. Thanks to the stable lubrication to the hook, it produces beautiful seams.
Double tension provided as : standard
The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread tension system.
Multi-functional 6-string switch (with automatic thread trimmer)
Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer. (Available for more thick material)
In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push.
New bobbin thread spool device
New bobbin thread spool device is no neccessity of rolling thread manually.
Technical Specification
| Model name | Juki PLC-2760SCA-7-0BB/X55321 |
|---|---|
| Type | 2-needle with automatic thread trimmer (Direct-drive) |
| Max. Sewing speed | 2,500sti/min* |
| Needle | 135×17 Nm100~180 Standard Nm140 |
| Thread | TEX 50~167 |
| Max. stitch length | 12mm (forward / backward) |
| Stitch adjusting method | 2 pitch dial |
| Thread take-up | Link type |
| Automatic reverse feed function | Pneumatic type |
| Needle bar stroke | 40mm |
| Hook | Vertical-axis 2.0-fold capacity hook (latch type) |
| Lift of the presser foot | By hand: 10mm Auto: 20mm |
| Alternating vertical movement | 1~9mm |
| Alternating vertical movement adjusting method | Dial |
| DL device | Provided as standard |
| Safety mechanism | Provided as standard |
| Bobbin thread winder | Built in the machine arm |
| Bottom-feed micro-adjustment mechanism | Provided as standard |
| Lubrication | Automatic (Tank system) |
| Distance from needle to machine arm | 347mm |
| Post height | 170mm |
| Knee-lifter | - |
| Auto-lifter | Option |
| Weight of the machine head | 84kg |
| Power requirement / Power consumption | Single-phase 100~120V / 200~240V 3-phase 200~240V / 193VA (with automatic thread trimmer) |
| Air consumption | 0.1dm³/min (ANR) |
*1 The maximum sewing speed is limited by the amount of the alternating vertical movement of the walking foot and presser foot and stitch length.
More Information
| Part No | PLC2760SCA70BBX55321 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Juki |
